SPECIFICATIONS

AC Current: 10A

AC Voltage: 600V

Brand Name: TOOLTOP

Capacitance: 100uF

Choice: yes

Continuity test: support

DC Current: 10A

DC Voltage: 600V

DIY Supplies: Electrical

Diode: Voltage is about 1.5 V

Duty cycle: 0%~100%

Frequency: 5Mhz

Hign-concerned Chemical: None

Origin: Mainland China

bandwidth: 1MHz

sampling rate: 2.5Msps

Features：

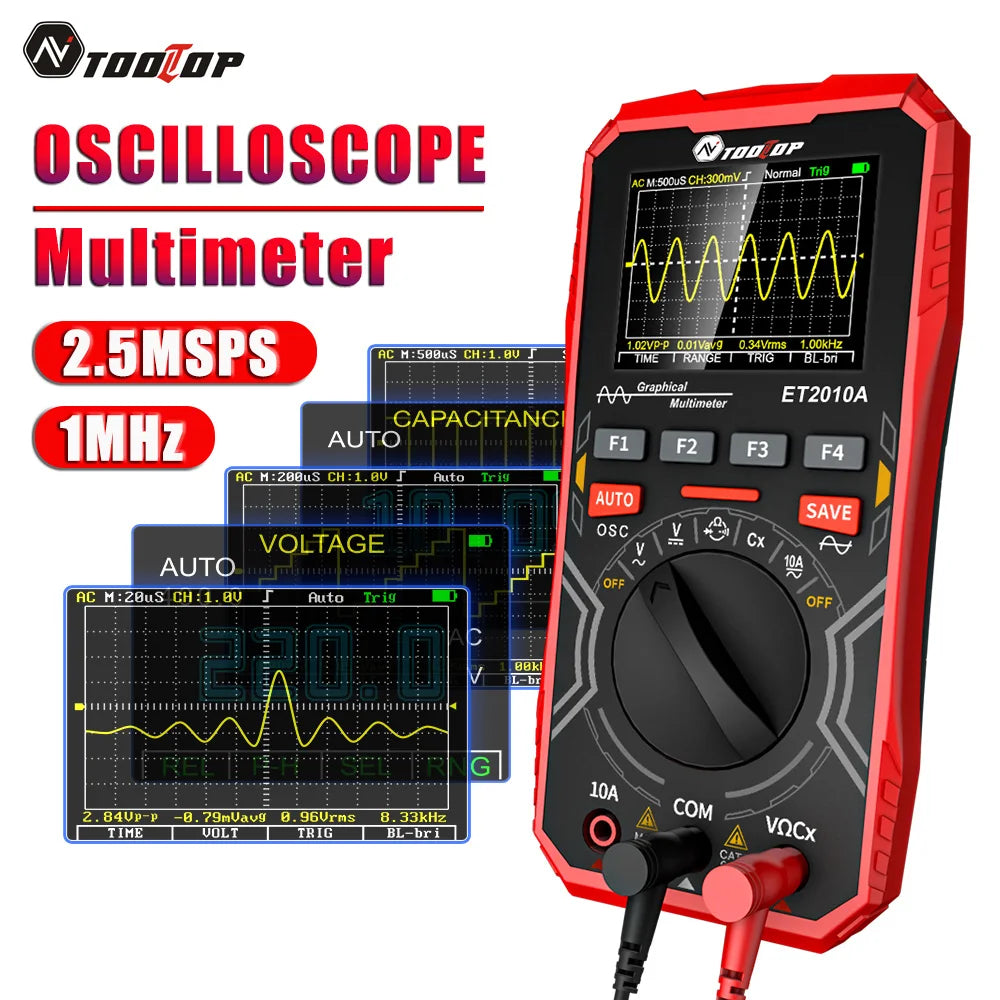

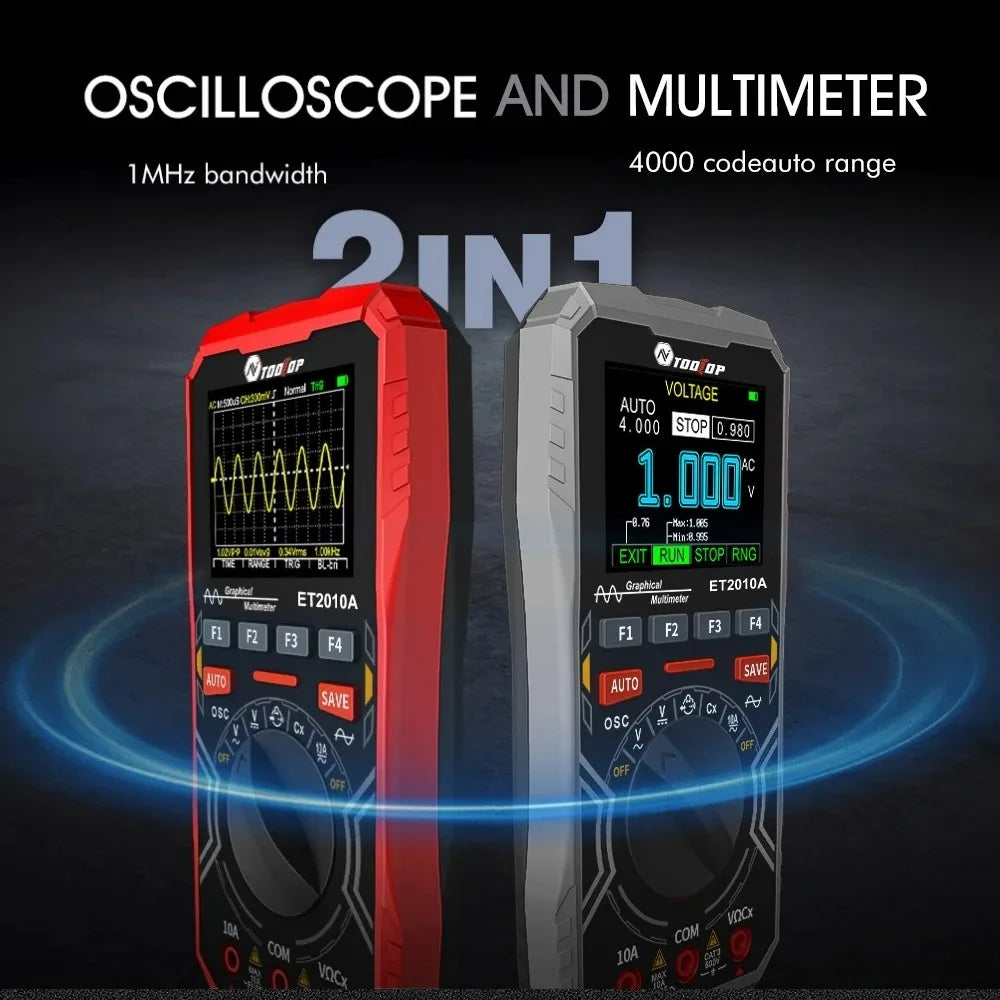

◆ 2.5Msps high-speed sampling, 1MHz analog bandwidth, 4000 count digital multimeter.

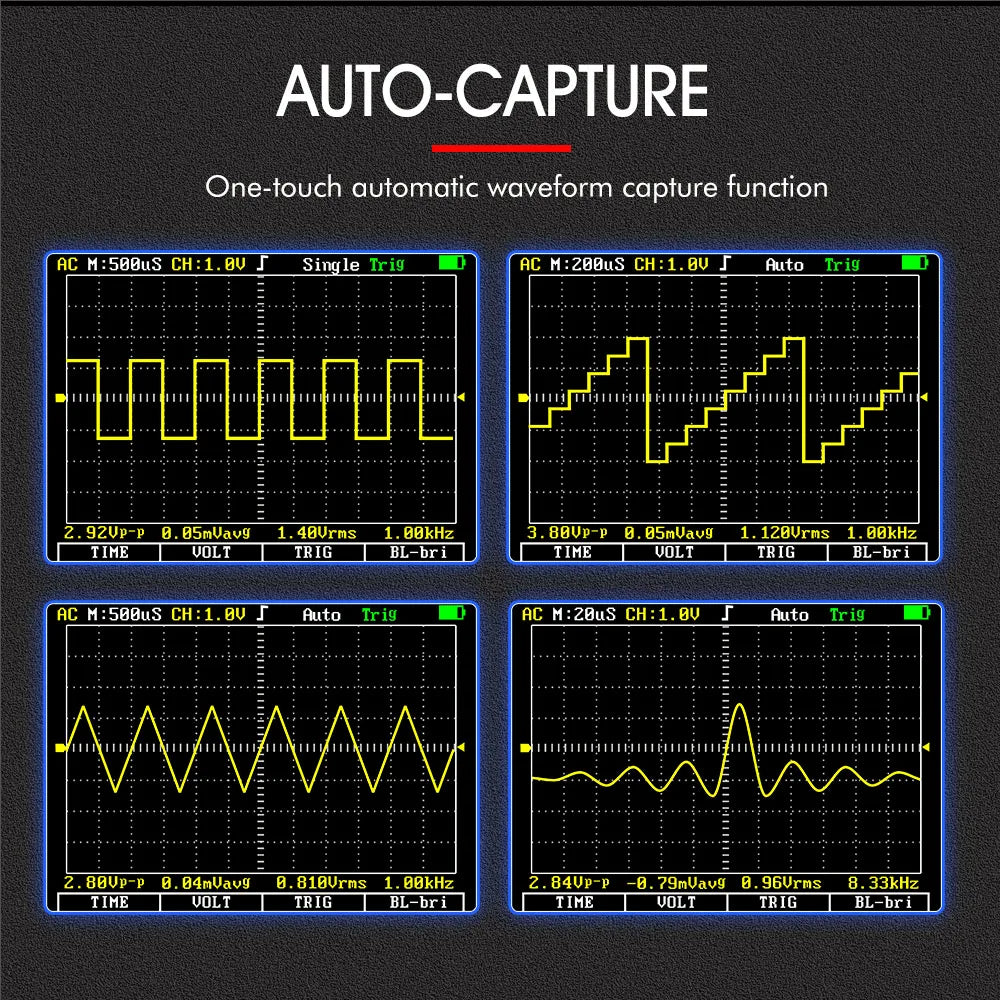

◆ One-click visual wave, there are three waveform scanning modes: automatic/conventional/single.

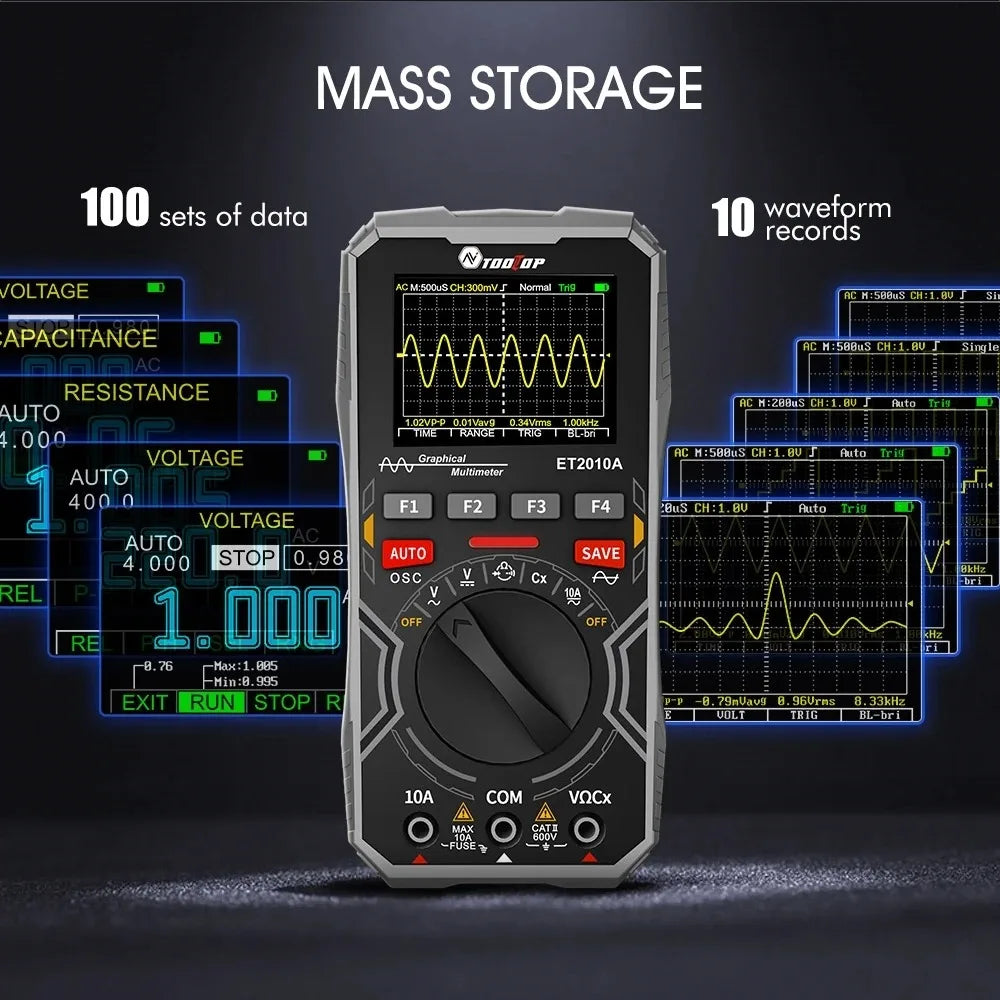

◆Save function for data and waveform in the measurement; a total of 100 sets of data and 10 waveform can be saved.

◆ When measuring waveforms, you can set parameters independently, such as: time base, amplitude, waveform scanning mode, etc.

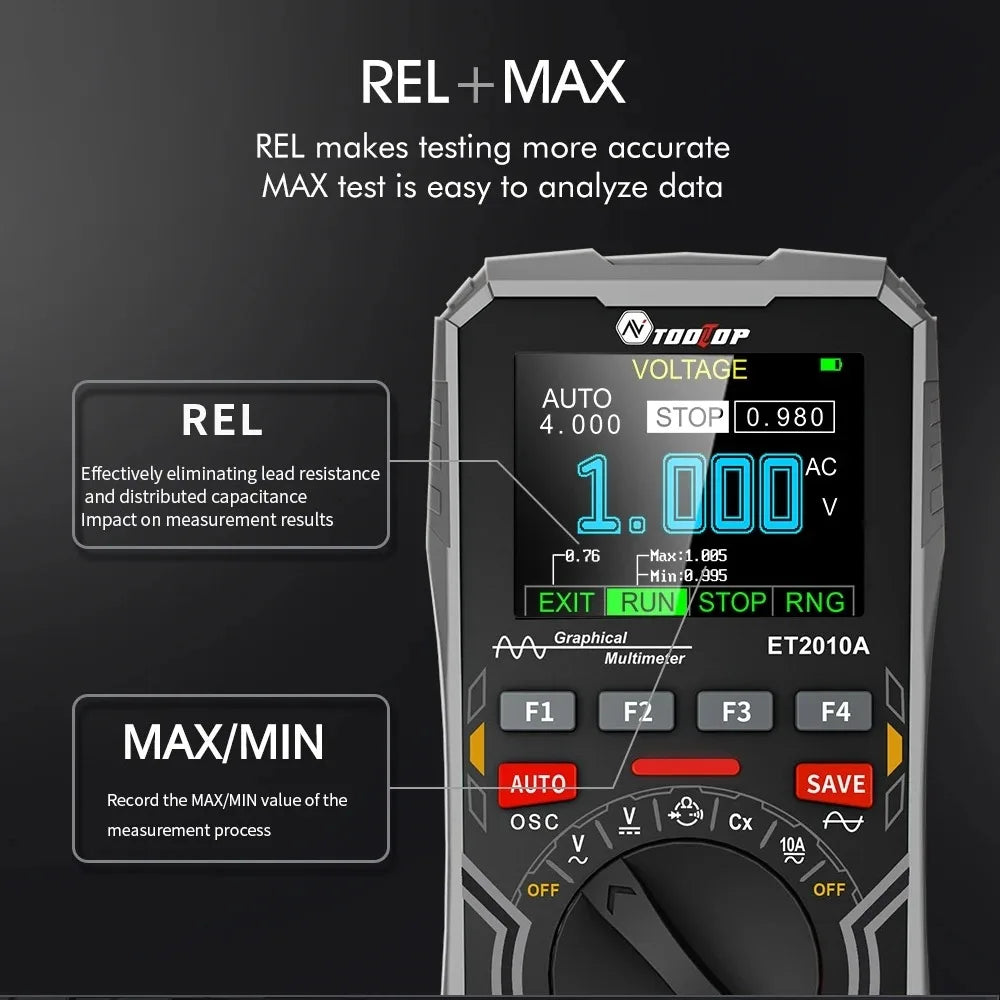

◆REL, effectively eliminate the lead resistance, distributed capacitance and interference signal.

◆ Multimeter functions include DC/AC voltage/current, resistance, capacitance, frequency, duty cycle,diode continuity test.

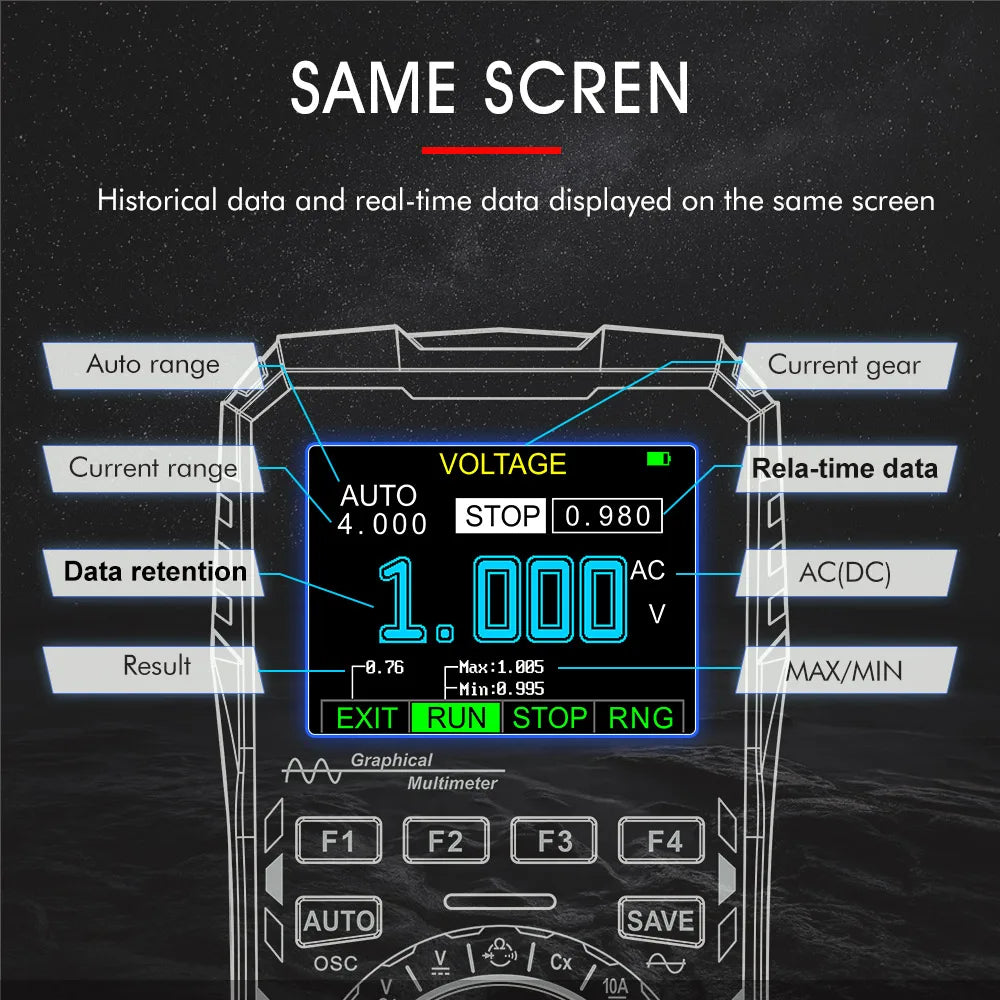

◆Automatic/manual switching for measuring range and display of measurement data and historic data on the same screen.

◆ Overload protection 10A double protective tube, dual protection of the instrument.

◆ Automatic shutdown in case of no operations for 15 minutes: bright backlight and clear display.

◆ Adopt 2.4 inch color screen display, the display effect is clear.

◆Higher reliability: no adjustment of potentiometer is required for panel calibration and internal storage calibration.

Specifications:

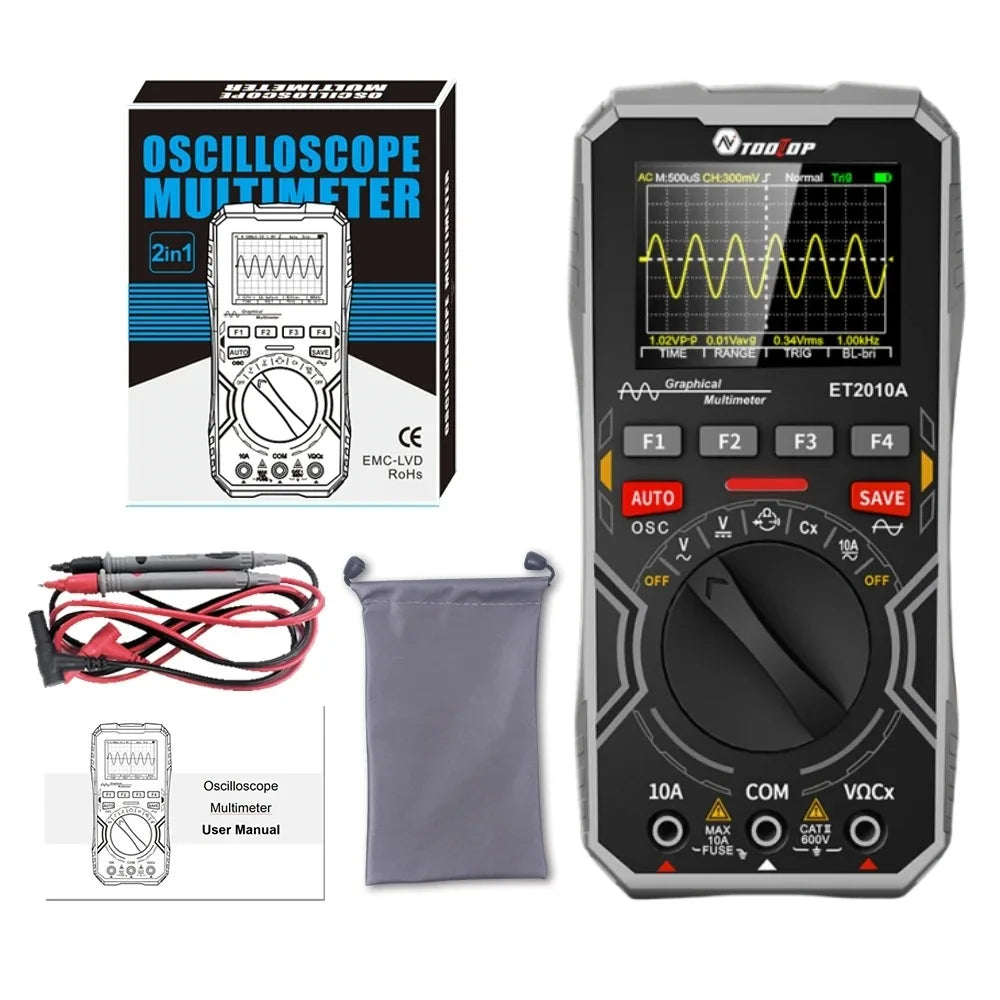

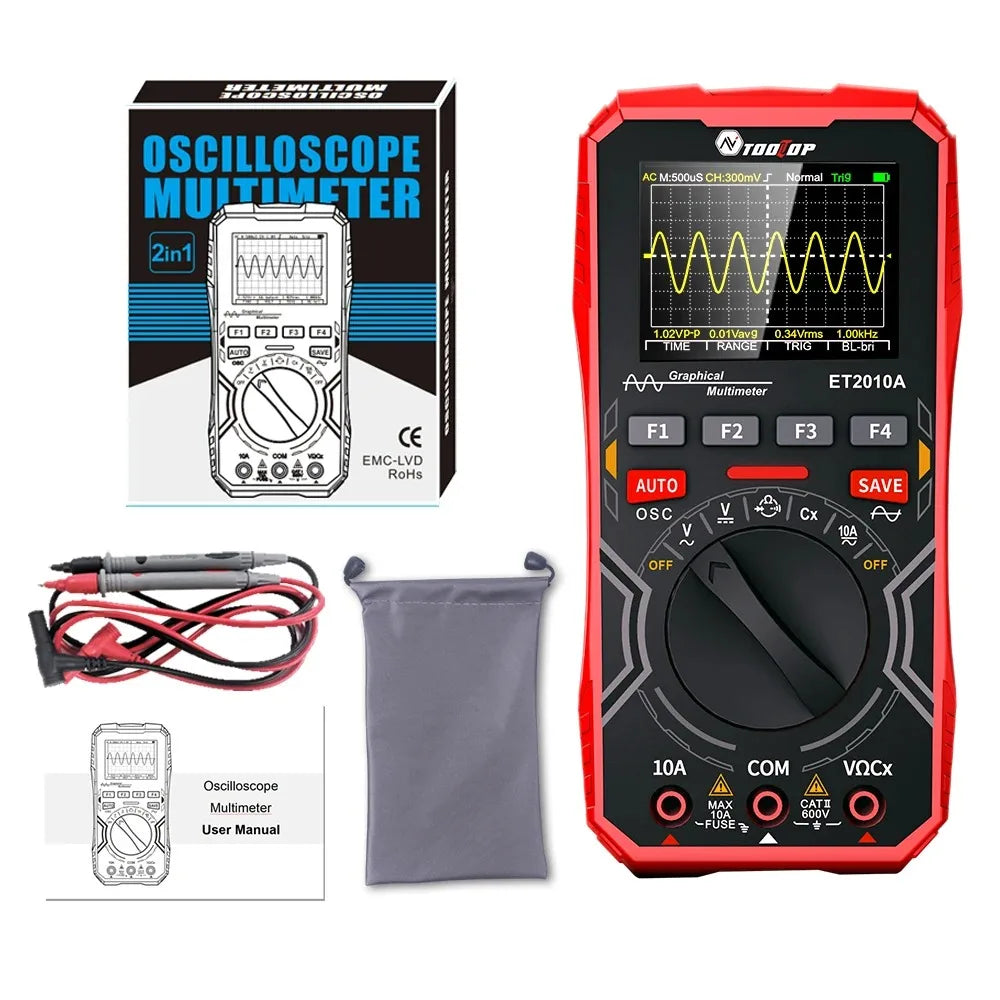

Package List:

1 X Oscilloscope multimeter

1 x One pair of test leads

1 x English manual

1 x Packaging box
